LLK-HP

Laser light cable for industrial kilowatt lasers LLK-HP

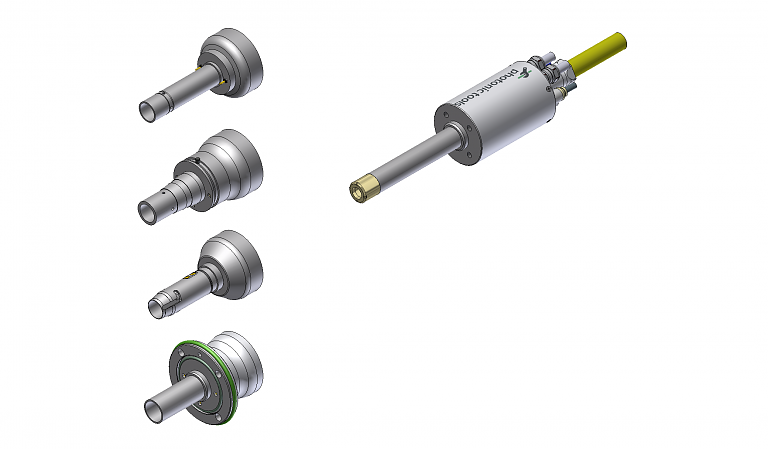

  • A new and industry unique modular laser light cable design: The core technology of the connector separated from the mechanical interface
  • The precise, robust and cost efficient  flange type connector interface PT-F for kilowatt lasers
  • Alternatively, D or QBH type connector standard or hybrid cables to the customers choice
  • Different fibre core diameters and fibre types, anti-reflection coated endcaps and protective windows, extended temperature and stray light monitoring and a Canbus communication are optionally available
  • For handling the kilowatt laser power a modestripper and an indirect fluid cooling allow a safe and simple laser integration



Optical

Fibre core diameter  20, 50, 75, 100, 150, 200, 300, 400, 600, 800, 1000, 1500 µm *
Fibre clad diameter 360, 480, 720, 960, 1100, 1200, 1650 µm *
Beam parameter acceptance 200 mrad
Transmission wavelength 900 - 1100 nm, *
Max. average laser power 15 kW **

Mechanical

Typical length 5, 10, 15, 20, 30, 40, 50 m *
Connector standard PT-B, PT-D, PT-F, PT-Q, pigtails
Min. bending radius 250 mm (300 mm for core diameter >1000 µm)
Dynmic applications Suitable for use on robot or gantry

Electrical

Fibre continuity monitoring (FCMS) According to connector standard
Relative temperature and stray light monitoring  Optional
Canbus communication  Optional

Environmental

Operating conditions 5 - 50 °C
Shipment and storage - 25 - 70 °C.

 Accessories

Connector receptacles | Fibre coupling systems | Collimation modules | Processing heads

 *others on request, **subject to coupling conditions

All data subject to change without prior notice
